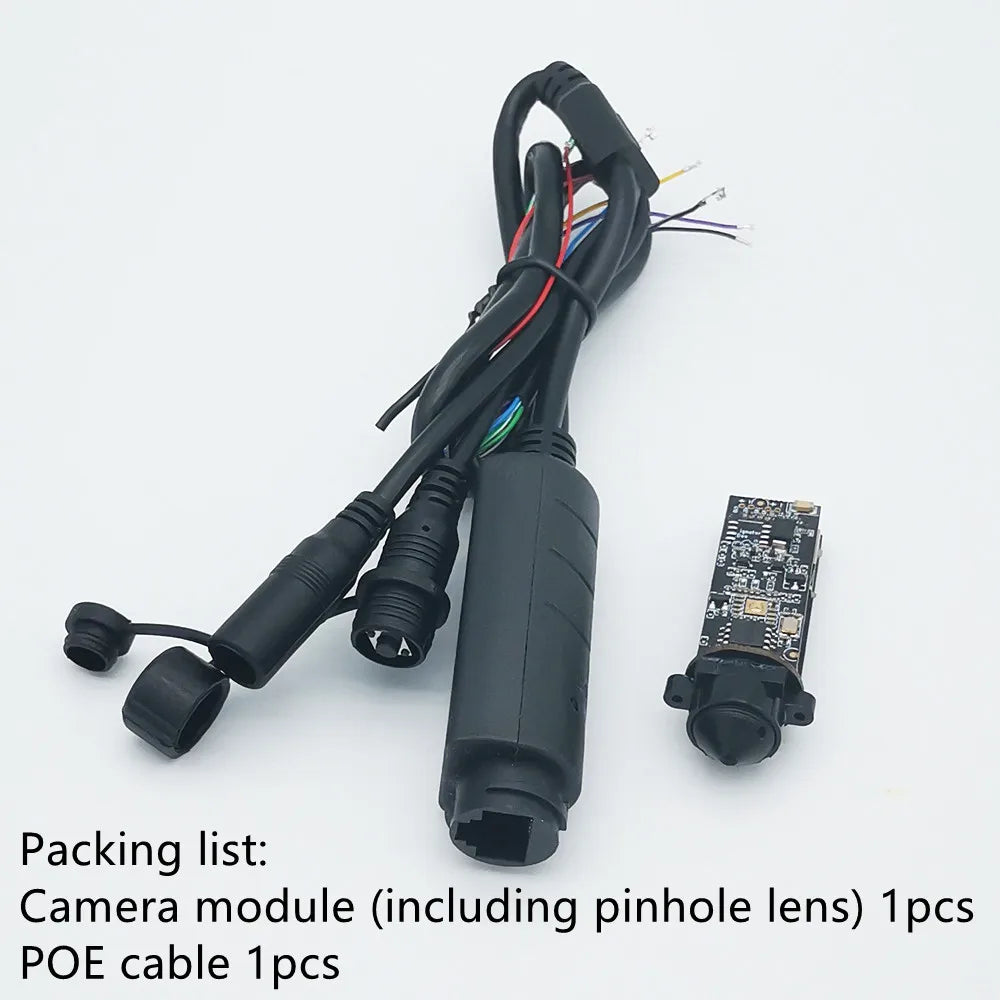

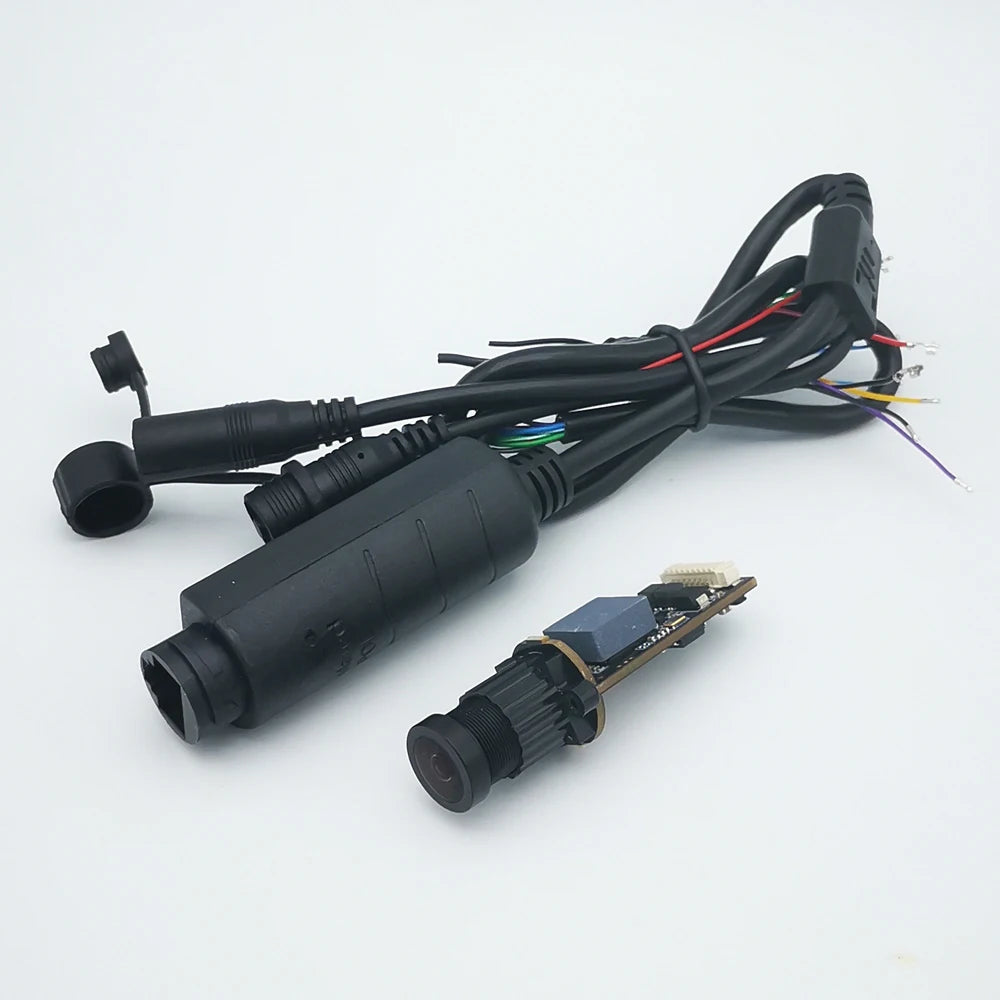

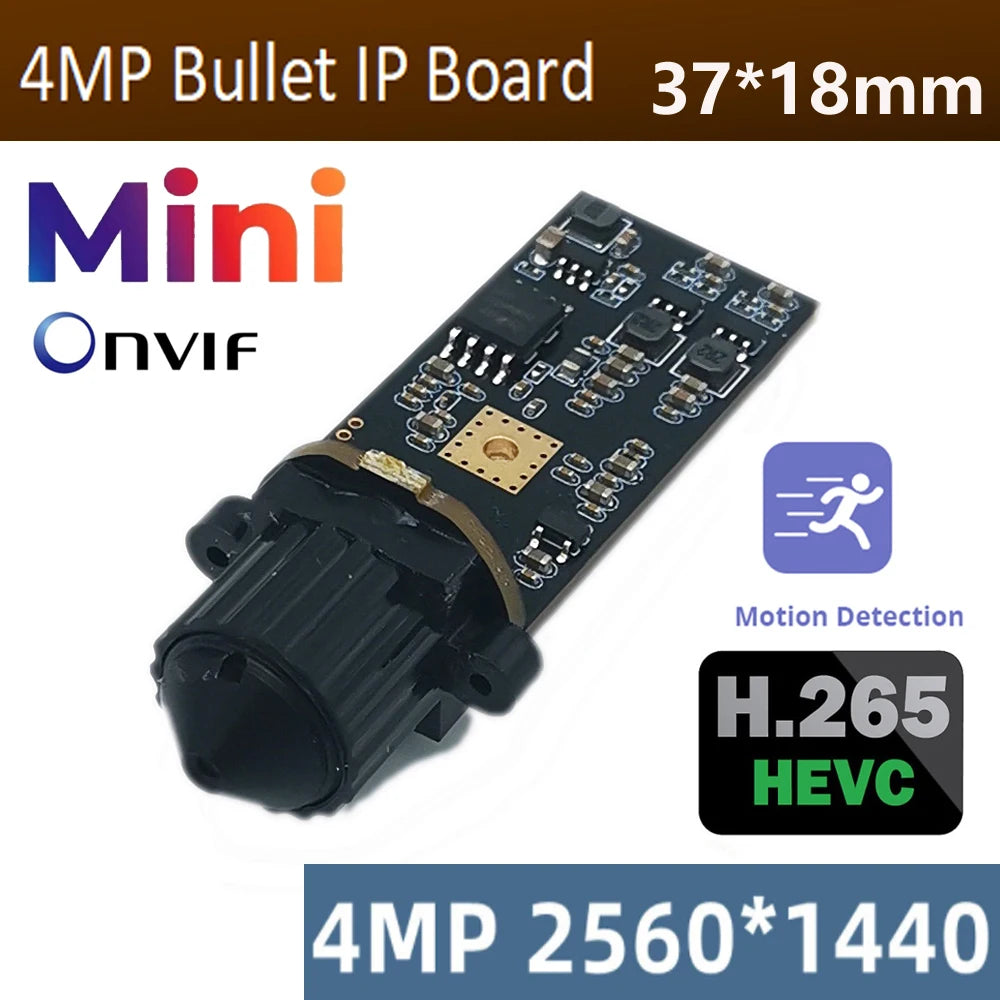

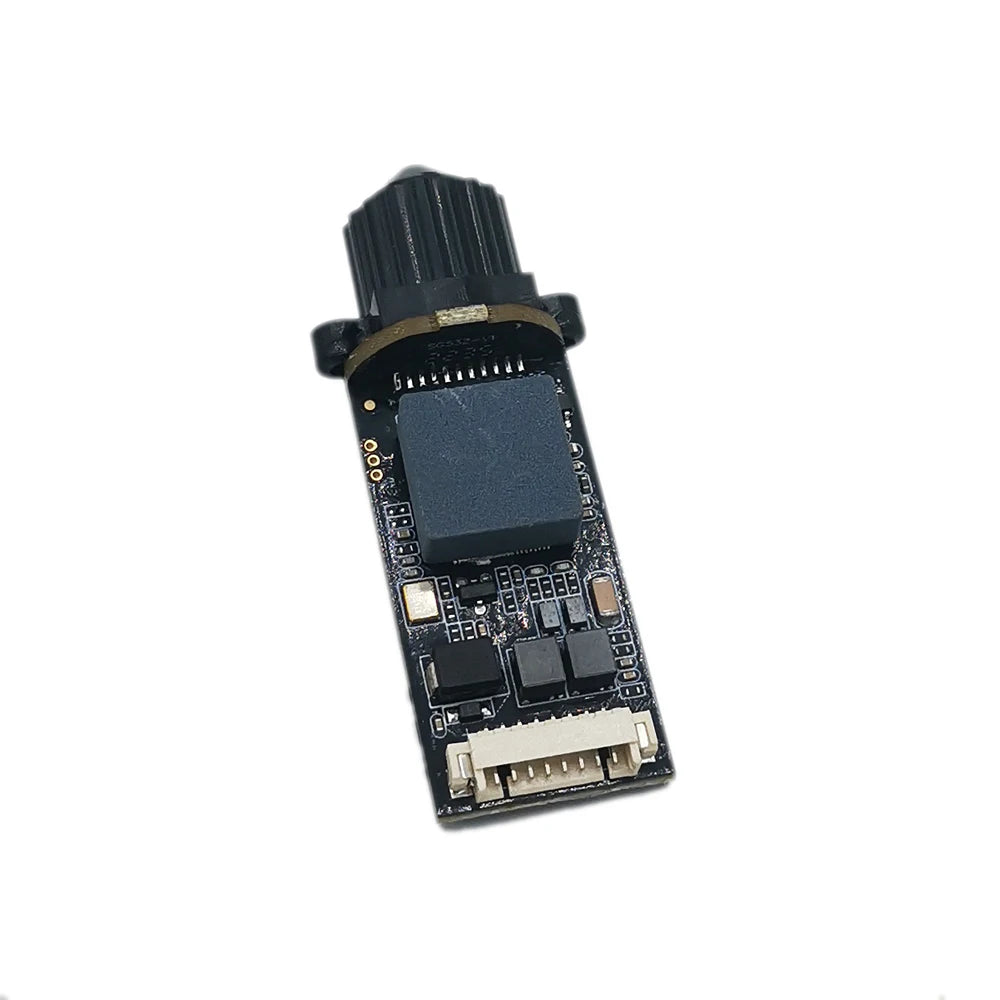

4MP Mini IP Bullet Camera Module Pcb Security CCTV P2P RTSP Used for Underwater Industrial Pipeline Inspection 1440P 1080P 30fps

€66,99 €83,99

Sensor Size POE-Pin hole lens DC12V-MTV lens POE-MTV lens DC12V-Pin hole lens

Focus 6mm 2.8mm 3.6mm

SPECIFICATIONS

AI Functions: Motion Detection

Alarm Action: FTP Photo,Local Alarm

App name: Other

Audio Output: None

Brand Name: HQCAM

Certification: CE

Color: black

Color Night Vision: no

Connectivity: IP/Network Wireless

Dimensions (L x W x D)(mm): 37*18mm

High Definition: 4.0 Megapixels

High-concerned chemical: none

IP Rating: Other

IR Distance(m): NA

Installation: Embedded,Normal

Internal Storage: None

Lens (mm): 3.6mm

Lens Quantity: Single Lens

Megapixels: 4MP

Minimum Illumination(Lux): 0.05Lux

Movement Range(Pan): 0°-360°

Movement Range(Tilt): Other

Operating Temperature: -10°-60°

Optical Zoom: NONE

Origin: Mainland China

Power Mode: Mains Electricity

Power Supply: With Poe

Power Supply(V): 12v

Rechargeable Battery: NONE

Rechargeable Battery Capability: Other

Scene: Indoor

Sensor: CMOS

Sensor Brand: SmartSens

Shell Material: Plastic

Smart home platform: Other

Special Features: Vandal-proof

Style: Mini Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 90°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: Optical zoom

is_customized: Yes

Industrial robot sewer operation built-in underwater diving video detection helmet HD camera module
Note this please:

This module does not support wifi and TF cards, nor audio, and supports the onvif protocol

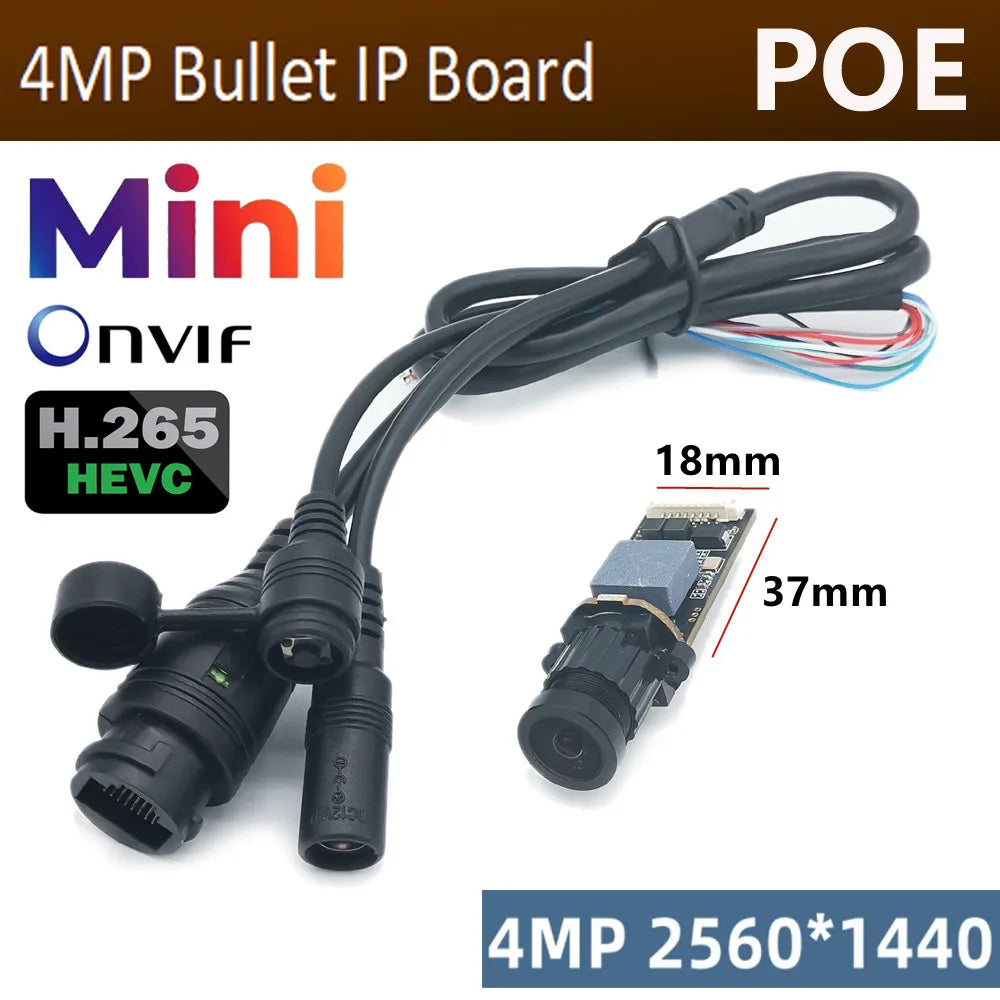

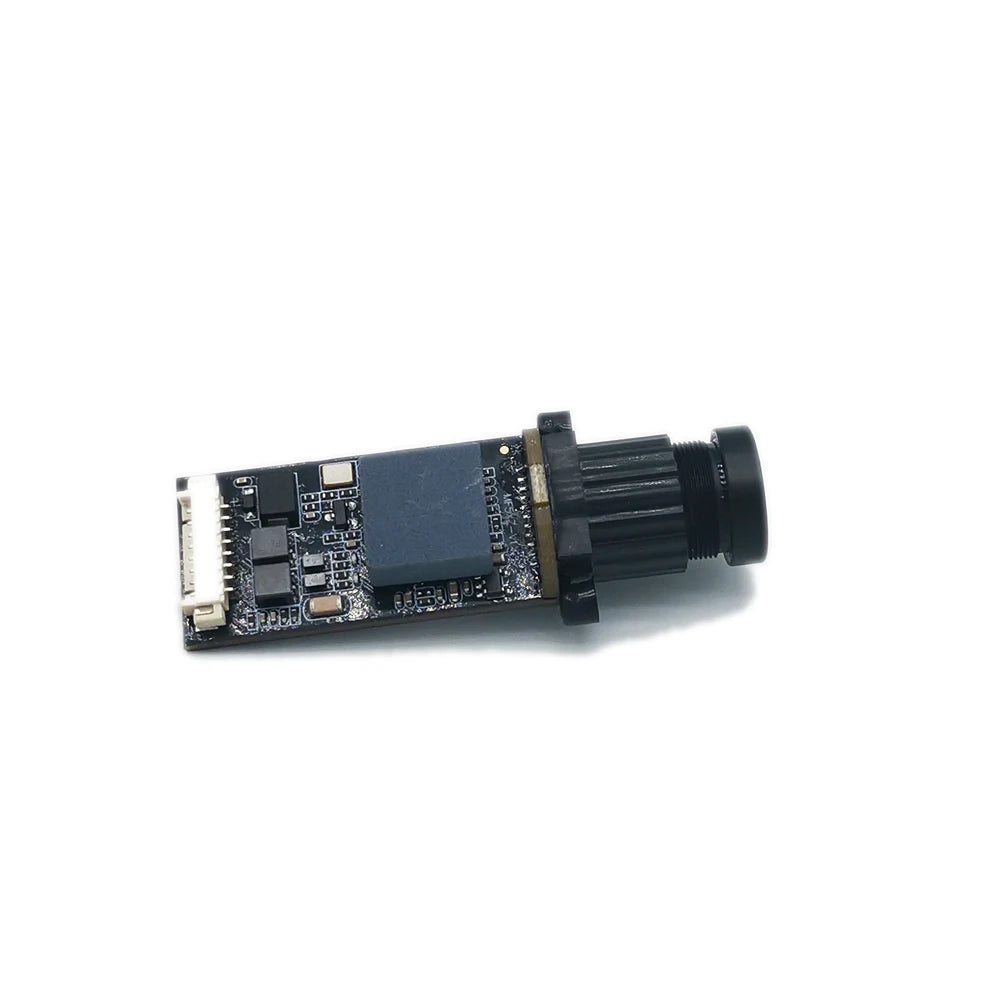

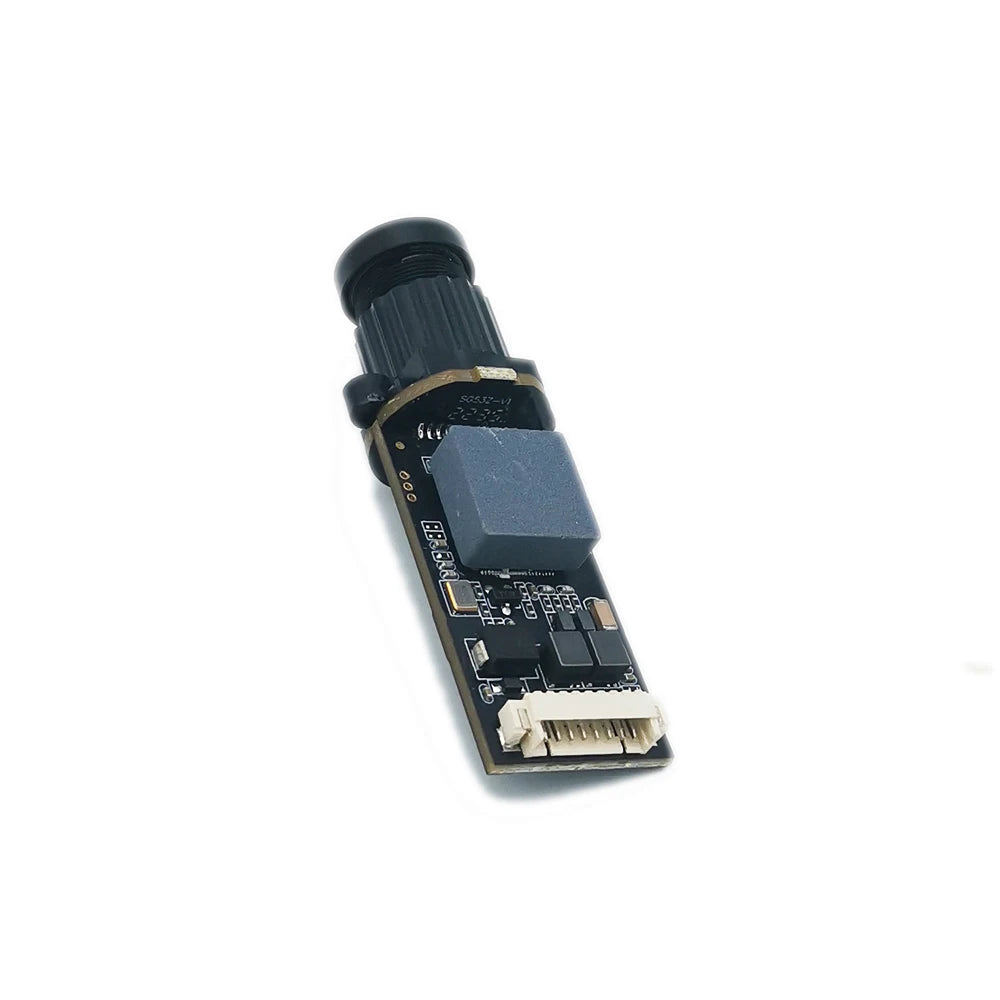

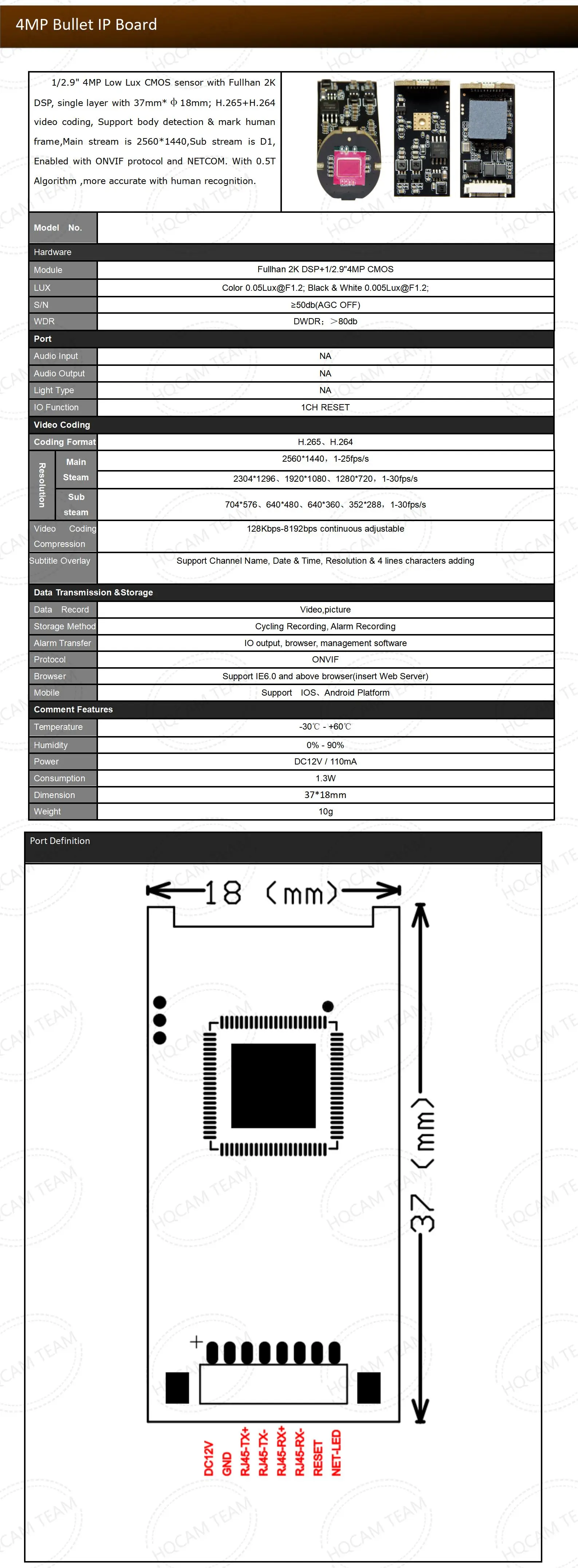

1/2.9" 4MP Low Lux CMOS sensor with Fullhan 2K DSP, single layer with 37mmφ18mm; H.265+H.264 video coding, Support body detection & mark human frame,Main stream is 25601440,Sub stream is D1, Enabled with ONVIF protocol and NETCOM. With 0.5T Algorithm ,more accurate with human recognition.
Model No.
Hardware
Module		Fullhan 2K DSP+1/2.9"4MP CMOS
LUX		Color 0.05Lux@F1.2; Black & White 0.005Lux@F1.2;
S/N		≥50db(AGC OFF)
WDR		DWDR;＞80db
Port
Audio Input		NA
Audio Output		NA
Light Type		NA
IO Function		1CH RESET
Video Coding
Coding Format		H.265,H.264
Resolution	Main Steam	2560*1440,1-25fps/s
		23041296,19201080,1280*720,1-30fps/s
	Sub steam	704576,640480,640360,352288,1-30fps/s
Video Coding Compression		128Kbps-8192bps continuous adjustable
Subtitle Overlay		Support Channel Name, Date & Time, Resolution & 4 lines characters adding
Data Transmission &Storage
DataRecord		Video,picture
Storage Method		Cycling Recording, Alarm Recording
Alarm Transfer		IO output, browser, management software
Protocol		ONVIF
Browser		Support IE6.0 and above browser(insert Web Server)
Mobile		Support IOS,Android Platform
Comment Features
Temperature		-30℃ - +60℃
Humidity		0% - 90%
Power		DC12V / 110mA
Consumption		1.3W
Dimension		37*18mm
Weight		10g
